ID-B 2P+N220
Winston
| Electrical Features | |
| Mode | Electromagnetic |
| Type(wave form of the earth leakage sensed) | B |
| Rated current In | 20,25,32,40,63,80,100A |
| Poles | 2P,4P |
| Rated voltage Ue | 2P 240V~,4P 415V~ |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated residual operation current(I△n) | 30, 100, 300mA |
| Rated residual making and breaking capacity (I△m) | 500A(In<40A), 10In(In>40A) |
| Short-circuit current Inc=I△c | 6,000A 10,000A |
| SCPD fuse | []6000[]10000 |
| Break time under I△n | ≤0.1s |
| Rated impulse withstand voltage(1.5/50) Uimp | 4000V |
| Dielectric test voltage at ind.Freq. for 1min | 2.5kV |
| Electrical life | 2,000 Cycles |
| Mechanical life | 4,000 Cycles |
| Installation | |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature(with daily average<35℃) | -5℃~+40℃ |
| Storage temperature | -25℃-+70℃ |
| Terminal connection type | Cable/Pin-type busbar/U-type busbar |
| Terminal size top/bottom for cable | 35mm2 18-3AWG |
| Terminal size top/bottom for busbar | 35mm2 18-3AWG |
| Tightening torque | 2.5Nm 22In-lbs |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
| Connection | Power supply in both directions |

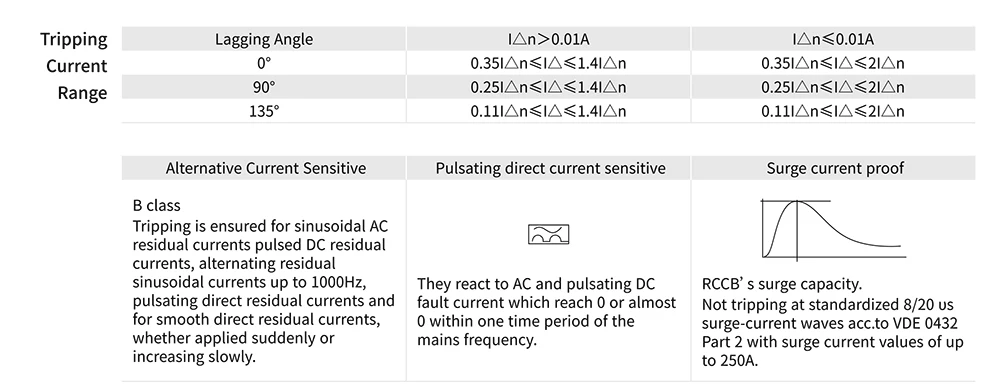

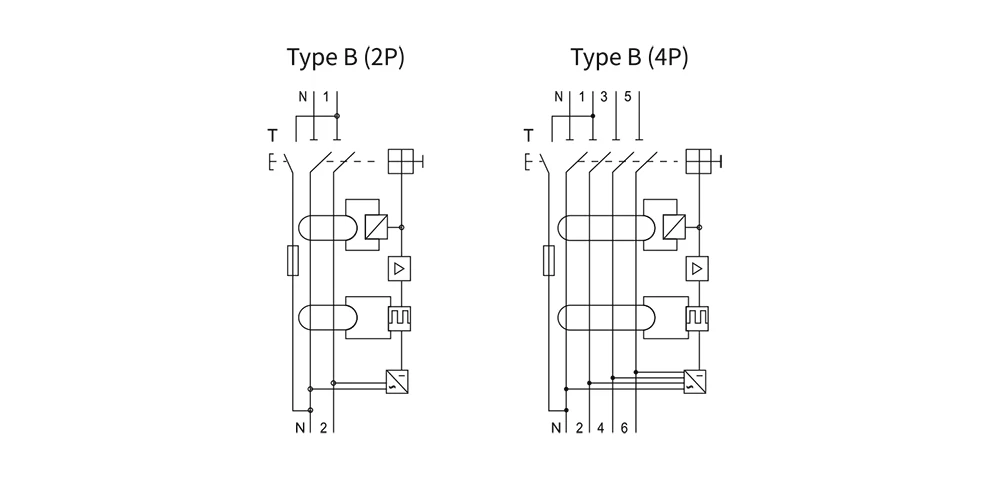

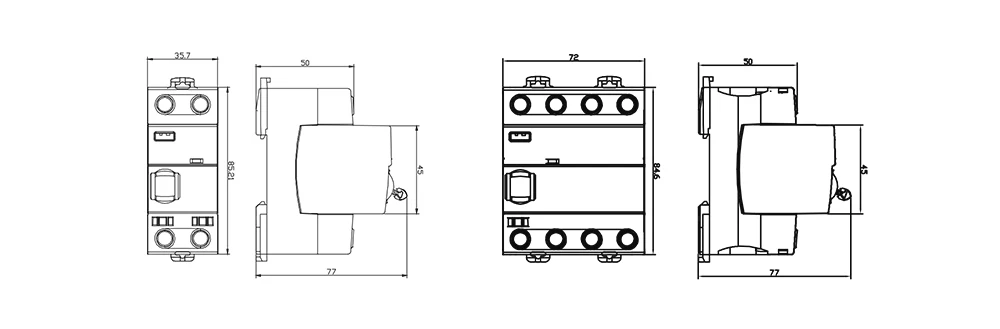

Wiring diagram
| Electrical Features | |
| Mode | Electromagnetic |
| Type(wave form of the earth leakage sensed) | B |
| Rated current In | 20,25,32,40,63,80,100A |
| Poles | 2P,4P |
| Rated voltage Ue | 2P 240V~,4P 415V~ |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated residual operation current(I△n) | 30, 100, 300mA |
| Rated residual making and breaking capacity (I△m) | 500A(In<40A), 10In(In>40A) |
| Short-circuit current Inc=I△c | 6,000A 10,000A |
| SCPD fuse | []6000[]10000 |
| Break time under I△n | ≤0.1s |
| Rated impulse withstand voltage(1.5/50) Uimp | 4000V |
| Dielectric test voltage at ind.Freq. for 1min | 2.5kV |
| Electrical life | 2,000 Cycles |
| Mechanical life | 4,000 Cycles |
| Installation | |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature(with daily average<35℃) | -5℃~+40℃ |
| Storage temperature | -25℃-+70℃ |
| Terminal connection type | Cable/Pin-type busbar/U-type busbar |
| Terminal size top/bottom for cable | 35mm2 18-3AWG |
| Terminal size top/bottom for busbar | 35mm2 18-3AWG |
| Tightening torque | 2.5Nm 22In-lbs |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
| Connection | Power supply in both directions |
Wiring diagram
